Hydraulic Press Brake
CNC Hydraulic Press Brake YCN Series

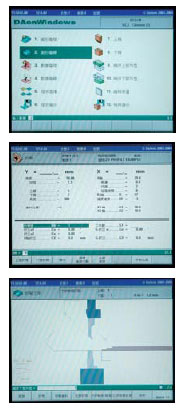

|Muitple Languages Screen|||

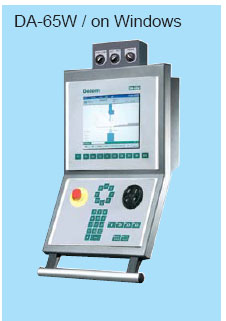

CNC/ DA-65W System On Windows Functions:
- European DELEM multi-axis controller. Workpiece and tooling are displayed in color graphics.
- Automatic workpiece length calculation.
- Graphical simulation of bending sequences. Display of workpiece profiles before and after bending.
- Automatic tonnage output calculation and adjustment.
- Programmable back gauge retreat.
- Programmable pressing speed and pressure-holding time.
- Equipped with European optical scales. Accuracy of repeat positioning is±0.01mm.
- Automatically calculate daylight and the distance of slow speed point.
- Various angles, including arc, can be accomplished by the same set of tooling.
- Each program contains 17 bends. All programs can be interconnected.
- Graphic display of punch and die. Storage capacity 2MB.
- Automatic adjustment of table deflection according to angular tolerance.
- Precision sectional dies and punches, each marked with length and angle to make tool selection easy.
- Back gauge travel under 500mm with speed of 200mm/sec.
- Automatic R axis adjustment according to height of lower die or other request.
- Multi-language controller, with English, Japanese, Korean, Chinese (traditional & simplified) available.
- German HOERBIGER hydraulic circuit. Y1 and Y2 are controlled by proportion servo valve, or adjusted independently.
- Easy operation with Manual, Automatic and Step-by-step modes.
- Basic Windows functions, 2 sets of USB interface.

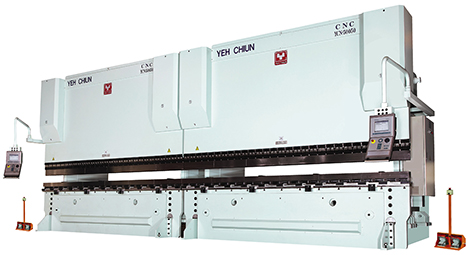

CNC PRESS BRAKE TANDEM SYSTEM:
- European DELEM multi-axis controller control Single or Tandem movement of two Press Brakes.
- Add IC board to Electrical control box to control Tandem movement.
- Adopting analog magnetic switch enables simultaneous movement at slow speed.
- Proceeding workpiece length from 8,000mm to 15,000mm.
- Tandem machine working efficiency equal to two Press Brakes, saving manufacturing time and raising productivity.
- Hydraulic crowning compensation system.
