CNC Hydraulic Press Brake YCN Series

CNC Hydraulic Press Brake YCN Series

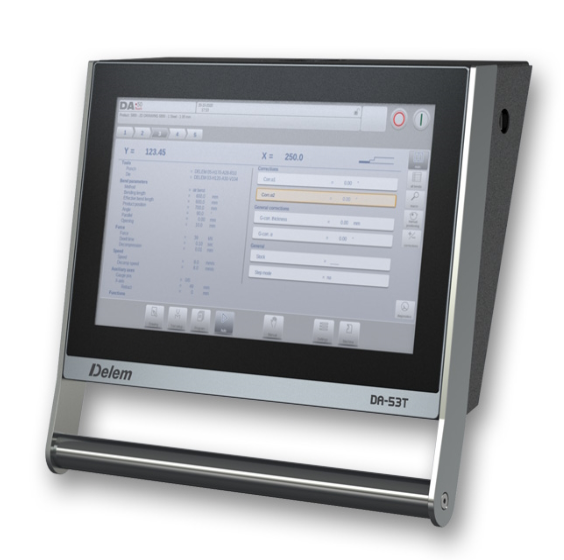

DA-53Tx

DA-53Tx Features

15" colour TFT touch screen
Full screen touch control
Optimize bending steps
Tooling library
Product library
Intuitive, friendly interface
Up to 4 axes control (Y1,Y2, X, R)

6.4" color LCD display. (TFT)
266 MHz processor, memory capacity 64MB.
Tooling database: punches for 30 sets, dies for 30 sets.
Standard Windows functions. User specific applications support.
USB keyboard, mouse and flash memory drive.
Precision ball screw lead, linear slide way and AC servo motor for X axis.
Bearing-type guideway system.
Angle position controlled by AC servo motor. (for 2 or 3 axes)
German HOERBIGER hydraulic circuit. (for 4 axes and above)
Equipped with European optical scales. (for 4 axes and above)

Alphanumeric product naming.
Millimetres/Inches, KN/Ton and languages selection.Number of steps up to 25. Step repeat up to 99 (maximum).
Programmable tooling, products and material properties.
Computed functions include tooling safety zones, press force, crowning adjustment, speed-change point and etc. (Differ from various axes.)
Store tooling & workpiece data via USB interface.
There are two modes: angle-input mode, depthinput mode.
Diagnostic program.
Both sides angles can be adjusted independently. (for 4 axes and above)

15” colour TFT touch screen
Full screen touch control
2D graphic programming by touch-screen control
3D product graph display
Automatic sequence computation
Automatic collision detection
Automatic pressure computation
Programmable material properties
Automatic crowning adjustment computation
Diverse comp uting programming functions
One page programming table
