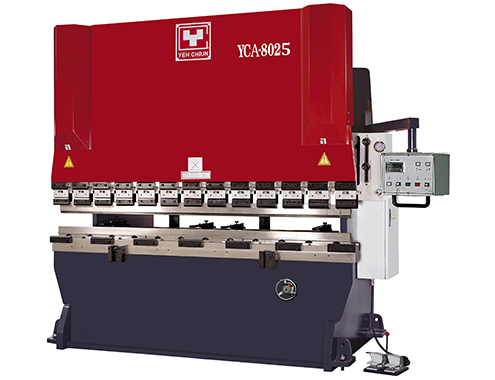

Explore Yeh Chiun's Hydraulic Press Brake YCA Series for Precision Bending Solutions

Specification

YCA SERIES

The dimension of table for models with capacity greater than 200 tons may be customized.

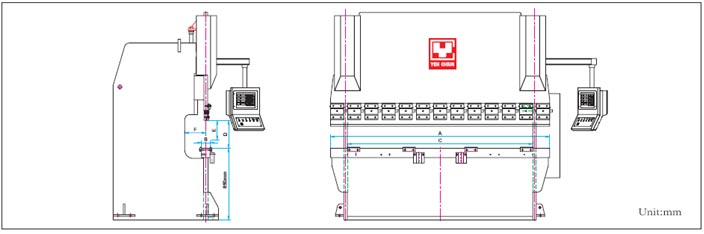

Type (Model)	Capacity ( SS400 ) (mm)	Max. Pressure (Ton)	Motor (HP)	A Table Length (mm)	B Table Width (mm)	C Distance Between Housing (mm)	D Daylight (mm)	E Stroke (mm)	R Throat (mm)	Lowering Speed (mm/s)	Pressing Speed (mm/s)	Return Speed (mm/s)
YCA-3013	2.5X1300	30	3	1300	100	1000	350	180	320	135	10	90
YCA-4516	3.2X1600	45	3	1600	100	1220	350	180	320	135	10	90
YCA-4520	2.5X2000	45	3	2000	100	1600	350	180	320	135	10	90
YCA-6020	4.0X2000	60	5	2000	100	1600	350	180	320	120	10	90
YCA-6025	3.0X2500	60	5	2500	100	2100	350	180	320	120	10	90
YCA-8020	5.0X2000	80	5	2000	100	1600	350	180	320	120	10	90
YCA-8025	4.0X2500	80	5	2500	100	2100	350	180	320	120	10	90
YCA-10025	4.5X2500	100	7.5	2500	100	2100	350	180	320	100	10	90
YCA-10032	3.5X3200	100	7.5	3200	100	2600	350	180	320	100	10	90
YCA-10042	3.0X4200	100	7.5	4200	100	3400	350	180	320	100	10	90
YCA-15025	7.0X2500	150	10	2500	150	2020	450	250	320	100	10	90
YCA-15032	5.8X3200	150	10	3200	150	2600	450	250	320	100	10	90
YCA-15042	4.5X4200	150	10	4200	150	3400	450	250	320	100	10	90
YCA-15050	3.5X5000	150	15	5000	150	4200	450	250	320	100	10	90
YCA-20032	7.0X3200	200	15	3200	250	2600	450	250	320	100	8-9	90
YCA-20042	6.0X4200	200	15	4200	250	3400	450	250	320	100	8-9	90
YCA-20050	5.0X5000	200	20	5000	250	4200	450	250	320	100	8-9	90
YCA-20060	4.0X6000	200	20	6000	250	5200	450	250	320	100	8-9	90
YCA-30032	11X3200	300	25	3200	300	2600	500	300	400	100	8-9	80
YCA-30042	8.5X4200	300	25	4200	300	3200	500	300	400	100	8-9	80
YCA-30050	7.0X5000	300	30	5000	300	4000	500	300	400	100	8-9	80
YCA-30060	6.0X6000	300	30	6000	300	5000	500	300	400	100	8-9	80
YCA-40032	15X3200	400	30	3200	300	2600	500	300	400	100	7	76
YCA-40042	12X4200	400	40	4200	300	3200	500	300	400	100	7	76
YCA-40050	10X5000	400	40	5000	300	4000	500	300	400	100	7	76
YCA-40060	8.0X6000	400	40	6000	300	5000	500	300	400	100	7	76
YCA-50042	15X4200	500	45	4200	400	3200	500	300	400	100	6	70
YCA-50050	12X5000	500	45	5000	400	4000	500	300	400	100	6	70
YCA-50060	10X6000	500	45	6000	400	5000	500	300	400	100	6	70
