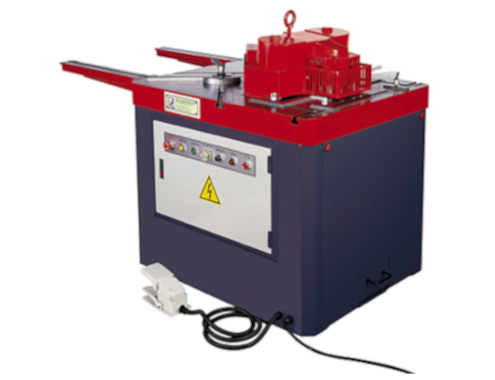

Hydraulic Notching Machine

YCE Series
http://azicb6.gtmc.app/web/image/product.template/7/image_1920?unique=ff10bd6

Max. Cutting Angle: 4.0x220x220 / 6.0x250x250 mm
Max. Cutting Edge: 2.0x50x100 / 3.0x100x150 mm
Stroke: 50/60 mm
Pressure: 15/20 Tons

Yeh Chiun hydraulic notching machine YCE series features steady structure high precision, longest life easy maintenance, and easy operation. If you are interested in our hydraulic notching machine, please contact us. If you have any customized needs, do not hesitate to let us know, our hydraulic notching machine is also customizable according to your need!

    This combination does not exist.

    Specification

    YCE SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    MAX. CUTTING
    ANGLE (mm)

    MAX. CUTTING
    EDGE (mm)

    		STROKE
    (mm)

    		MOTOR
    		OIL HYDRAULIC
    CYLINDER
    		OIL HYDRAULIC
    MAX.PRESSURE
    		OIL HYDRAULIC
    PUMP
    		OIL HYDRAULIC
    TANK
    		GROSS WEIGHT
    		 PACKING SIZE
    (LxWxH)
    (mm)
    YCE-220
    		4.0x220x220
    		2.0x50x100
    		50
    		3HP
    		15TON
    		140KG/cm2
    		30ℓ /MIN(60HZ)
    		25/MIN(50HZ)
    		950KG
    		1170x990x1300
    YCE-250
    		6.0x250x250
    		3.0x100x150
    		60
    		5HP
    		20TON
    		140KG/cm2
    		30ℓ /MIN(60HZ)
    		25/MIN(50HZ)
    		1000KG
    		1170x900x1300


    Applicably in cutting angles and edges of soft steel and stainless steel plates shown in below drawing
