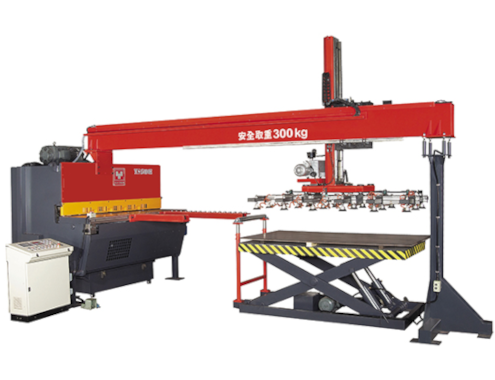

Automatic Hydraulic Shear Feed and Stacking Production Line YCS-F Series

YCS-FR Type
http://azicb6.gtmc.app/web/image/product.template/6/image_1920?unique=5c2b6e2

EASY TO OPERATE & HIGH ECONOMIC EFFICIENCY MACHINE

All parts of the machine are developed and designed by Yeh Chiun Co. Ltd., and the main frame of the machine is calculated by the latest version of high precision 3D software "PRO/ENGINEER". Anti-tension, anti-pressing force and die crowning are limited in safe range. After annealing to remove the stress, it can remain the rigidity and precision of the main structure.

    This combination does not exist.


    1. 2D graphical touch screen.
    2. 3D visualization in simulation and production.
    3. 17" color LCD display. (TFT)
    4. Standard Windows functions. User specific applications support.
    5. USB keyboard, mouse and flash memory drive.
    6. Emergency stop device.
    7. German HOERBIGER hydraulic circuit.
    8. Equipped with European optical scales.
    9. Precision ball screw lead, linear slide way and AC servo motor for X axis.
    10. Bearing-type guideway system.
