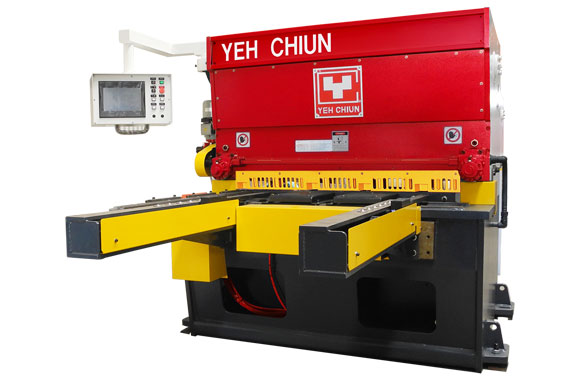

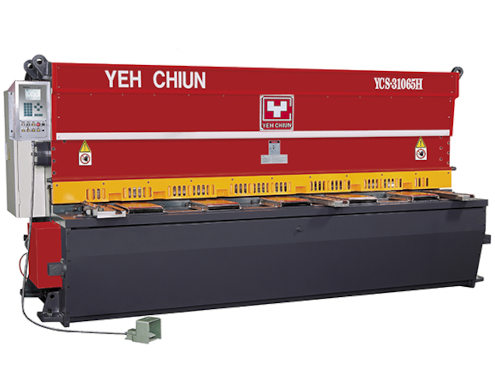

  4. CNC Mutiple AXES Hydraulic Guillotine Shear YCS-H Series YCS-HD Type

CNC Mutiple AXES Hydraulic Guillotine Shear YCS-H Series

YCS-HD Type
http://azicb6.gtmc.app/web/image/product.template/23/image_1920?unique=07d629f

Back Gauge Brake Motor
Speed: Adjustalbe
Accuracy: + / - 0.1 mm
Stroke: 800 mm
Drawing Number: 1-100
Operation Number: 1-25
Shear Length: 0.1-9.9M
Counter: 1-9999
Blade Clearance: Automatically adjust

    This combination does not exist.

    1. Blade angle:Input thickness and material code, controller will adjust automatically.
    2. Blade gap:Input thickness, controller will adjust automatically.
    3. Blade stroke:Input shearing length, controller will calculate descending stroke.
    4. Four materials:Thickness of steel plate, stainless plate, copper plate and aluminum plate can be calculated automatically from 0.1 to 99.9mm.
    5. Total storage:100 operations. One program can store 25 operations, each operation can be repeated for 9999 times.
    6. Controller will calculate pressing pressure and the angle of upper blade according to different plate and thickness.
    1. With programmable hydraulic circuit, the blade and shearing gap can be automatically adjusted through hydraulic cylinder. The shear edge is burr free and precise.
    2. The computer will, with the input plate thickness, automatically calculate the output tonnage of hold-down cylinders and hydraulic cylinder to ensure smooth shear.
    3. The shear body and blade base are made of SS400 steel plates and the internal stress is eliminated by annealing which assures the rigidity of the structure. Control functions are integrated in the front side of the shear for the ease of operations.
    4. Overload protection ensures the safety of the shear and the operator.
    5. Back gauge is driven by servomotor and precision ball screw for accurate positioning.
    6. Back gauge linear slide is overhang by accurate guide.
    7. Zero point test function.
    8. Easy back gauge calibration.
    9. Pre-retreat of back gauge to avoid collision with the thick plate being sheared.
    10. The controller maintains functional in the environment of high-voltage electromagnetism.

    ※ Automatic sheet support system provides extreme long plate shearing and protection from scratch. The support's quick response to plate support and descent makes the shearing even more accurate and smoother. (OPTIONAL)

    • CNC/DAC-360S CONTROLLER SYSTEM
    • NC/YCS-HA Type CONTROLLER SYSTEM
    • OBLONG FRONT SCALE 1400mm
    • FRONT FRAME 1400mm
    • FRONT GAUGE SETTER
    • FRICTIONLESS BALL ROLLER WORKING TABLE
    • SHADOW LINE DEVICE
    • HAND PROTECTION DEVICE
    • SCRATCHPROOF RUBBER PUSH PAD
    • MAINTENANCE AND OPERATIONAL MANUAL
    • TOOLS FOR MAINTENANCE (BOX)
    1. 2D graphical touch screen.
    2. 3D visualization in simulation and production.
    3. 17" color LCD display. (TFT)
    4. Standard Windows functions. User specific applications support.
    5. USB keyboard, mouse and flash memory drive.
    6. Emergency stop device.
    7. German HOERBIGER hydraulic circuit.
    8. Equipped with European optical scales.
    9. Precision ball screw lead, linear slide way and AC servo motor for X axis.
    10. Bearing-type guideway system.


    Square front scale and positioning device

    Specification

    CNC/YCS-H SERIES / YCS-HD Type
    NC/YCS-H SERIES / YCS-HA Type

    The specifications are subject to change without prior notice as a result of our continuing R&D.

    Type
    (Model)
    YCS-HA
    YCS-HD

    Shearing
    Length
    (mm)

    Max.
    Thickness
    ( SS400 )
    (mm)

    		Stainless
    Steel Thickness
    ( SUS304 )
    (mm)

    		Throat
    (mm)
    		Max. Angle
    (SS400)
    		Minimum
    Angle    		Shear/Min
    		Hold-Down
    Beam
    Cylinder
    (No.)
    		Main
    Motor
    (HP)​
    		Backgauge
    Stroke
    (mm)
    YCS-15045H
    		1550
    		4.5
    		3.0
    		100
    		2°
    		1°
    		27-35
    		9
    		10
    		800
    YCS-20045H
    		2000
    		4.5
    		3.0
    		100
    		2°
    		1°
    		26-34
    		11
    		10
    		800
    YCS-25045H
    		2500
    		4.5
    		3.0
    		100
    		2°
    		1°
    		25-33
    		13
    		10
    		 800
    YCS-31045H
    		3100
    		4.5
    		3.0
    		100
    		2°
    		1°
    		24-32
    		16
    		15
    		800
    YCS-41045H
    		4100
    		4.5
    		3.0
    		100
    		2°
    		1°
    		17-25
    		21
    		15
    		800
    YCS-61045H
    		6100
    		4.5
    		3.0
    		100
    		2°
    		1°
    		11-19
    		30
    		20
    		800
    YCS-15065H
    		1550
    		6.5
    		4.0
    		100
    		2°
    		1°
    		26-34
    		9
    		15
    		 800
    YCS-20065H
    		2000
    		6.5
    		4.0
    		100
    		2°
    		1°
    		25-33
    		11
    		15
    		800
    YCS-25065H
    		2500
    		6.5
    		4.0
    		100
    		2°
    		1°
    		24-32
    		13
    		15
    		800
    YCS-31065H
    		3100
    		6.5
    		4.0
    		100
    		2°
    		1°
    		21-29
    		16
    		20
    		800
    YCS-41065H
    		4100
    		6.5
    		4.0
    		100
    		2°
    		1°
    		15-23
    		21
    		25
    		800
    YCS-61065H
    		6100
    		6.5
    		4.0
    		100
    		2°
    		1°
    		11-19
    		30
    		30
    		800
    YCS-25080H
    		2500
    		8.0
    		5.0
    		100
    		2° 30'
    		1°
    		18-26
    		13
    		25
    		800
    YCS-31080H
    		3100
    		8.0
    		5.0
    		100
    		2° 30'
    		1°
    		15-23
    		16
    		25
    		800
    YCS-41080H
    		4100
    		8.0
    		5.0
    		100
    		2° 30'
    		1°
    		12-20
    		21
    		30
    		800
    YCS-61080H
    		 6100
    		8.0
    		5.0
    		100
    		2° 30'
    		1°
    		7-15
    		30
    		40
    		800
    YCS-150100H
    		1550
    		10
    		6.5
    		100
    		2° 30'
    		1°
    		22-30
    		9
    		30
    		800
    YCS-250100H
    		2500
    		10
    		6.5
    		100
    		2° 30'
    		1°
    		18-26
    		13
    		 30
    		800
    YCS-310100H
    		3100
    		10
    		6.5
    		100
    		2° 30'
    		1°
    		15-23
    		16
    		30
    		800
    YCS-410100H
    		4100
    		10
    		6.5
    		100
    		2° 30'
    		1°
    		12-20
    		21
    		40
    		800
    YCS-610100H
    		6100
    		10
    		6.5
    		 100
    		2° 30'
    		1°
    		7-15
    		30
    		50
    		800
    YCS-250130H
    		2500
    		13
    		8.5
    		100
    		2° 30'
    		1°
    		15-21
    		13
    		40
    		800
    YCS-310130H
    		3100
    		13
    		8.5
    		100
    		2° 30'
    		1°
    		13-19
    		16
    		40
    		 800
     YCS-410130H
    		4100
    		13
    		8.5
    		100
    		2° 30'
    		1°
    		10-16
    		21
    		50
    		800
    YCS-610130H
    		6100
    		13
    		8.5
    		100
    		2° 30'
    		1°
    		7-13
    		30
    		75
    		800
    YCS-250160H
    		2500
    		16
    		10.5
    		100
    		2° 30'
    		1°
    		11-17
    		13
    		50
    		800
    YCS-310160H
    		3100
    		16
    		10.5
    		100
    		2° 30'
    		1°
    		9-15
    		16
    		50
    		800
    YCS-410160H
    		4100
    		16
    		10.5
    		100
    		2° 30'
    		1°
    		7-13
    		21
    		50
    		800
    YCS-610160H
    		6100
    		16
    		10.5
    		100
    		2° 30'
    		1°
    		3-9
    		30
    		75
    		 800
    YCS-250200H
    		2500
    		20
    		13
    		100
    		2° 30'
    		1°
    		10-16
    		13
    		100
    		800
    YCS-310200H
    		3100
    		20
    		13
    		100
    		2° 30'
    		1°
    		8-14
    		16
    		100
    		800
    YCS-410200H
    		4100
    		20
    		13
    		100
    		2° 30'
    		1°
    		6-12
    		21
    		100
    		800
    YCS-610200H
    		6100
    		20
    		13
    		100
    		2° 30'
    		1°
    		2-8
    		30
    		125
    		800
    YCS-200250H
    		2000
    		25
    		16.5
    		100
    		2° 30'
    		1°
    		11-17
    		10
    		100
    		800
    YCS-250250H
    		2500
    		25
    		16.5
    		100
    		2° 30'
    		1°
    		10-16
    		13
    		100
    		800
    YCS-310250H
    		3100
    		25
    		16.5
    		100
    		2° 30'
    		1°
    		8-13
    		16
    		125
    		 800
    YCS-410250H
    		4100
    		25
    		16.5
    		 100
    		2° 30'
    		1°
    		6-12
    		 21
    		125
    		800
    YCS-610250H
    		6100
    		25
    		16.5
    		100
    		2° 30'
    		1°
    		 2-8
    		30
    		125
    		800
