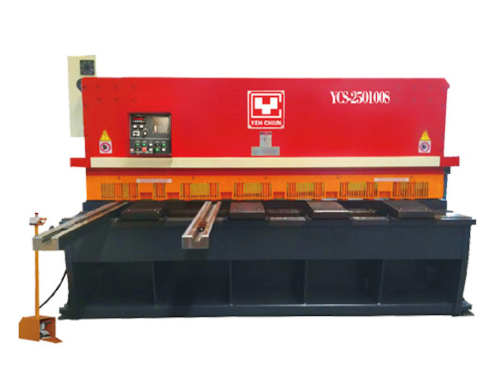

NC Hydraulic Swing Beam Shear

YCS-SM Type
http://azicb6.gtmc.app/web/image/product.template/26/image_1920?unique=a266d62

Back Gauge Brake Motor
Speed: 1420 RPM
Reduction Ratio: 10 : 1
Accuracy: + / - 0.1 mm
Stroke: 800 mm
Shear Length: 0.1-9.9M
Counter: 9999

A hydraulic guillotine shear is a machine that cuts metal or other materials with a sharp blade that moves up and down by hydraulic power. It can make clean and precise cuts on metal in different forms, such as plates, sheets, or rods. The cut metal can then be shaped or bent on another machine.

Yeh Chiun hydraulic guillotine shearing machine has a sturdy and compact design with an adjustable shearing angle. Our YCS-HM Model can cut metal sheets with lengths from 0.1-9.9M and thicknesses from 0.1mm to 25mm. For other detailed specifications of our hydraulic guillotine shear, you can find out through the table below.

    This combination does not exist.

    1. wing beam shear makes precision cuts through the operation of its beam mechanism. The blade clearance can be adjusted by the use of an electric worm gear setter for plates with various thicknesses. Proper shearing can be obtained after the input of plate thickness.
    2. Unique hydraulic control adjusts automatically the output of hold-down cylinders according to the magnitude of the load. Shearing thickness ranges from 0.1mm to 25m.
    3. Logic hydraulic circuit, controlled by sequence valves functions at a low level of noise with no vibration. Stability, as well as the normal fluid temperature of hydraulic components, can be maintained under high-speed and long-lasting operations to assure consistent performance of the swing beam shear.
    4. The swing beam shear body and blade base are made of SS400 steel plates which have been annealed for the elimination of internal stress. Control functions are integrated with the front side of the shear for ease of operations.
    5. Overload protection ensures the safety of the swing beam shear and operators.
    6. A point in the frame of the lower blade is used as the center of arc movement of the upper blade, which offers precision shear through hydraulic cylinder operation.
    7. The special design of swinging beam support offers easy adjustment of blade's clearance. The clearance between blades can be attained by key-pressing and will be displayed in numerical form with decimal points. The precise clearance guarantees a smooth shear surface as well as shear safety.
    8. The adoption of heavy-duty bearings at the beam joints can ensure precision and wear-resistant service life.
    9. The back gauge is driven by a motor and precision ball screw to shear accurately and precisely.
    10. Back gauge dual U overhang linear guide.
    11. Easy back gauge calibration.
    12. Pre-retreat of the back gauge to thick sheet cutting.
    13. The controller maintains function in the environment of high-voltage electromagnetism.

    ※ Automatic sheet support system provides extreme long plate shearing and protection from scratch. The support's quick response to plate support and descent makes the shearing even more accurate and smoother. (OPTIONAL)

    1. FRONT SCALE 1400mm
    2. FRONT FRAME 1400mm
    3. FRONT GAUGE SETTER
    4. FRICTIONLESS BALL ROLLER WORKING TABLE
      1.5~2M... 3PC 2.5M.......4PC
      3M... .......5PC 4M.......6PC
      5M...........8PC 6M.....10PC
    5. SHADOW LINE DEVICE
    6. HAND PROTECTION DEVICE
    7. RUBBER PUSH PAD
    8. MAINTENANCE AND OPERATIONAL MANUAL
    9. TOOLS FORMAINTENANCE (BOX)
    1. 2D graphical touch screen.
    2. 3D visualization in simulation and production.
    3. 17" color LCD display. (TFT)
    4. Standard Windows functions. User specific applications support.
    5. USB keyboard, mouse and flash memory drive.
    6. Emergency stop device.
    7. German HOERBIGER hydraulic circuit.
    8. Equipped with European optical scales.
    9. Precision ball screw lead, linear slide way and AC servo motor for X axis.
    10. Bearing-type guideway system.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.


    Blade clearance adjustment system (Worm gear)

    Front gauge setter

    Specification

    YCS-S SERIES / YCS-SM Type

    The specifications are subject to change without prior notice as a result of our continuing R&D.

    Type
    (Model)
    YCS-SM

    Shearing
    Length
    (mm)

    Max.
    Thickness
    ( SS400 )
    (mm)

    		Stainless
    Steel Thickness
    ( SUS304 )
    (mm)

    		Throat
    (mm)
    		Max. Angle
    (SS400)
    		Shear/Min
    		Hold-Down
    Beam
    Cylinder
    (No.)
    		Main
    Motor
    (HP)​
    		Backgauge
    Stroke
    (mm)
    YCS-15045S
    		1550
    		4.5
    		3.0
    		 250/300
    		1° 30'
    		27-32
    		9
    		10
    		800
    YCS-20045S
    		2000
    		4.5
    		3.0
    		250/300
    		1° 30'
    		26-31
    		11
    		10
    		800
    YCS-25045S
    		2500
    		4.5
    		3.0
    		250/300
    		1° 30'
    		25-30
    		13
    		10
    		 800
    YCS-31045S
    		3050
    		4.5
    		3.0
    		250/300
    		1° 30'
    		24-29
    		16
    		15
    		800
    YCS-41045S
    		4050
    		4.5
    		3.0
    		250/300
    		1° 30'
    		17-22
    		2115
    		800
    YCS-15065S
    		1550
    		6.5
    		4.0
    		300
    		1° 30'
    		26-31
    		9
    		15
    		800
    YCS-20065S
    		2000
    		6.5
    		4.0
    		300
    		1° 30'
    		25-30
    		11
    		15
    		800
    YCS-25065S
    		2500
    		6.5
    		4.0
    		300
    		1° 30'
    		24-29
    		1320
    		800
    YCS-31065S
    		3050
    		6.5
    		4.0
    		300
    		1° 30'
    		21-26
    		16
    		20
    		800
    YCS-41065S
    		4050
    		6.5
    		4.0
    		300
    		1° 30'
    		15-20
    		2125
    		800
    YCS-61065S
    		6050
    		6.5
    		4.0
    		300
    		1° 30'
    		11-16
    		30
    		30
    		800
    YCS-150100S
    		1550
    		10
    		6.5
    		300
    		1° 45'
    		22-27
    		925
    		800
    YCS-250100S
    		2500
    		10
    		6.5
    		300
    		1° 45'
    		18-23
    		1325
    		 800
    YCS-310100S
    		3050
    		10
    		6.5
    		300
    		1° 45'
    		15-20
    		1630
    		800
    YCS-410100S
    		4050
    		10
    		6.5
    		300
    		1° 45'
    		12-17
    		2140
    		800
    YCS-610100S
    		6050
    		10
    		6.5
    		300
    		1° 45'
    		7-12
    		3050800
     YCS-250130S
    		2500
    		13
    		8.5
    		300
    		1° 45'
    		15-17
    		1340
    		800
    YCS-310130S
    		3050
    		13
    		8.5
    		300
    		1° 45'
    		13-15
    		1640
    		800
    YCS-410130S
    		4050
    		13
    		8.5
    		300
    		1° 45'
    		10-12
    		2150
    		800
    YCS-610130S
    		 6050
    		13
    		8.5
    		300
    		1° 45'
    		7-9
    		3075
    		800
    YCS-250160S
    		2500
    		16
    		10.5
    		300
    		2°
    		11-13
    		13
    		50
    		800
    YCS-310160S
    		3050
    		16
    		10.5
    		300
    		2°
    		9-11
    		1650
    		800
    YCS-410160S40501610.53002°7-9 2150
    		800
    YCS-610160S
    		6050
    		16
    		10.5
    		300
    		2°
    		3-5
    		3075800
    YCS-250200S
    		2500
    		20
    		13
    		300
    		2° 30'
    		10-12
    		13
    		75
    		800
    YCS-310200S
    		3050
    		20
    		13
    		300
    		2° 30'
    		8-10
    		1675
    		800
    YCS-410200S
    		4050
    		20
    		13
    		300
    		2° 30'
    		6-8
    		21100800
    YCS-610200S
    		6050
    		20
    		13
    		300
    		2° 30'
    		2-4
    		30100800
    YCS-250250S
    		2500
    		25
    		16.5
    		300
    		2° 30'
    		10-12
    		13100
    		800
    YCS-310250S
    		3050
    		25
    		16.5
    		300
    		2° 30'
    		8-10
    		16125800
    YCS-410250S
    		4050
    		25
    		16.5
    		300
    		2° 30'
    		6-8
    		21125800
    YCS-610250S
    		6050
    		25
    		16.5
    		300
    		2° 30'
    		2-4
    		30125800
