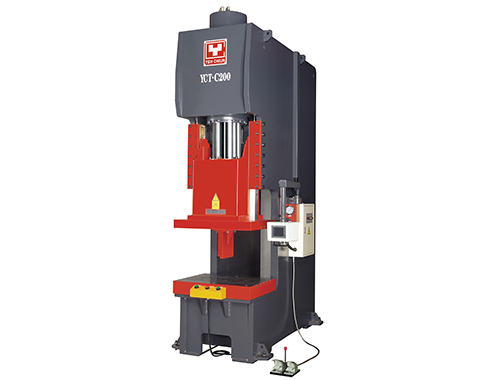

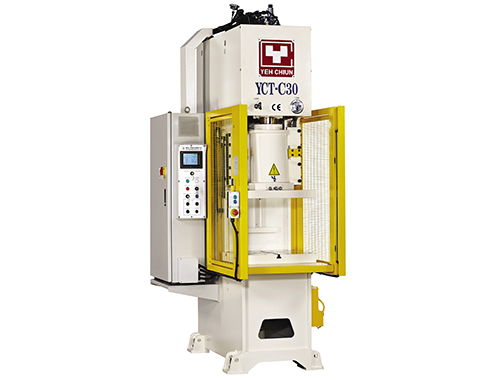

C-Frame Hydraulic Press Machine

YCT-C Series
http://azicb6.gtmc.app/web/image/product.template/29/image_1920?unique=4ff317a

Capacity: 10-300 Tons
Table: 550x425 ~ 1000x800 mm
Stroke: 300-450 mm

The C-type press is a hydraulic forming machine with a single-column main frame. With three-sided access to the working area, C-frame presses enable seamless part loading and unloading, along with hassle-free die maintenance. In comparison with other metalworking machines, C-frame hydraulic presses require less floor space, while maintaining excellent rigidity, guiding performance, speed, and precision. Many different industries use hydraulic c frame press machines to perform metal forming processes, including aerospace, automotive, industrial, medical, military, and more.

    This combination does not exist.

    1. The machine structure is C-frame. All the parts are included in machine body, the operation is safe and simple.
    2. Design is simple and free of trouble.
    3. The machine is multiple purpose, we are able to modify the design and enchance functions to meet your special requirements.
    1. Press in and push out of shafts and sockets.
    2. The bending and deep drawing of sheet metal.
    3. Straighten, forming, shear and punching.
    4. Compression testing.
    5. Production of computer caninet and parts.
    6. office furniture components including drawer, rails.
    7. Cabinet and components of refrigeration and air conditioning.
    8. Architectire industrial machine componets manufacture.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.

    Specification

    YCT-C SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    Capacity
    ( TON )

    Table
    size
    (mm)

    		Daylight
    (mm)

    		Stroke
    (mm)
    		Descending
    Speed
    (mm/sec)
    		Pressing
    Speed
    (mm/sec)
    		Ascending
    Speed
    (mm/sec)
    		Motor
    (HP)
    YCT-C10
    		10
    		550x425
    		450
    		300
    		160
    		10
    		170
    		3
    YCT-C20
    		20
    		600x425
    		450
    		300
    		160
    		15
    		160
    		5
    YCT-C30
    		30
    		600x500
    		450
    		300
    		170
    		14
    		160
    		7.5
    YCT-C50
    		50
    		750x600
    		500
    		350
    		18014
    		180
    		10
    YCT-C100
    		100
    		750x600
    		600
    		400200
    		14
    		200
    		15
    YCT-C150
    		150
    		900×700
    		700
    		450
    		200
    		14
    		200
    		20
    YCT-C200
    		200
    		1000x800
    		700
    		450200
    		10
    		200
    		​25
    YCT-C300
    		3001000×800
    		7004502001020030
