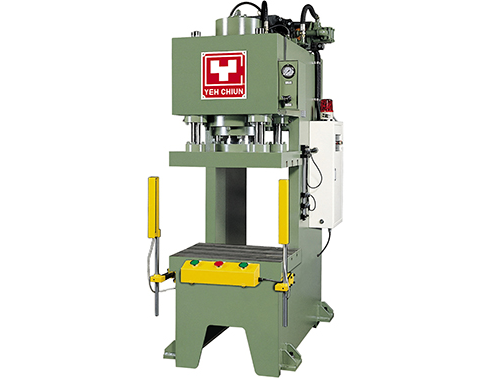

C-Frame Hydraulic Press

YCT-CG Series
http://azicb6.gtmc.app/web/image/product.template/30/image_1920?unique=9b4940c

Capacity: 10-300 Tons
Table: 550x425 ~ 1000x800 mm
Stroke: 300-450 mm

    This combination does not exist.

    1. The machine structure is C-frame. All the parts are included in machine body, the operation is safe and simple.
    2. Design is simple and free of trouble.
    3. The machine is multiple purpose, we are able to modify the design and enchance functions to meet your specialrequirements.
    1. Press in and push out of shafts and sockets.
    2. The bending and deep drawing of sheet metal .
    3. Straighten, forming, shear and punching.
    4. Compression testing.
    5. Production of computer caninet and parts.
    6. office furniture components including drawer, rails.
    7. Cabinet and components of refrigeration and air conditioning.
    8. Architectire industrial machine componets manufacture.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.


    Specification

    YCT-CG SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    Capacity
    ( TON )

    Table
    size
    (mm)

    		Daylight
    (mm)

    		Stroke
    (mm)
    		Descending
    Speed
    (mm/sec)
    		Pressing
    Speed
    (mm/sec)
    		Ascending
    Speed
    (mm/sec)
    		Motor
    (HP)

    YCT-CG10

    10

    550x425

    450

    300

    160

    10

    170

    3

    YCT-CG20

    20

    600x425

    450

    300

    160

    15

    160

    5

    YCT-CG30

    30

    600x500

    450

    300

    170

    14

    160

    7.5

    YCT-CG50

    50

    700x600

    500

    350

    180

    14

    180

    10

    YCT-CG100

    100

    750x600

    600

    400

    200

    14

    200

    15

    YCT-CG150

    150

    900x700

    700

    450

    200

    14

    200

    20

    YCT-CG200

    200

    1000x800

    700

    450

    200

    10

    200

    25

    YCT-CG300

    300

    1000x800

    700

    450

    200

    10

    200

    30
