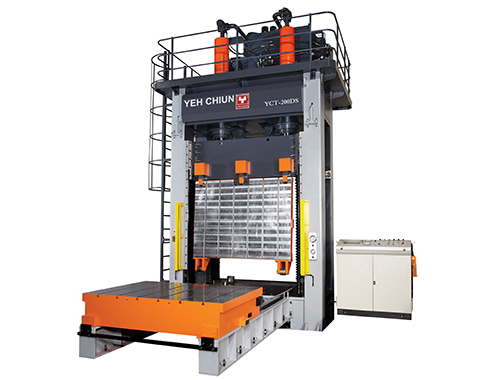

Hydraulic Die Spotting Press Machine

YCT-DS Series
http://azicb6.gtmc.app/web/image/product.template/32/image_1920?unique=6308536

Capacity: 50-500 Tons
Table: 1000x800 ~ 3600x2400 mm
Stroke: 1000-2700 mm

    This combination does not exist.

    1. Slide table reverse 180° system.

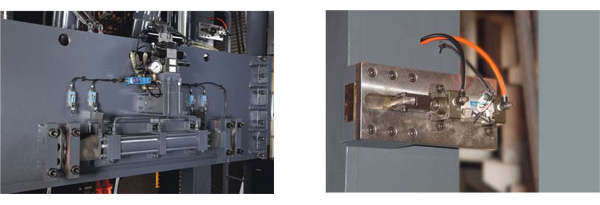

    2. Pneumatic slide TDC lock.
    3. Slide table hydraulic lock.

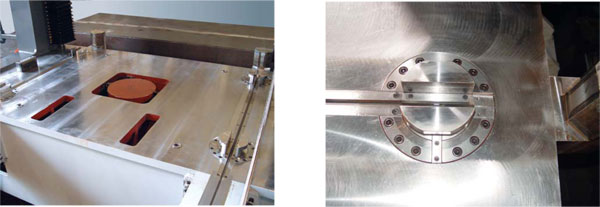

    4. Bolster hydraulic positioning lock system.
    5. Bolster automatic hub device.
    6. Optical scale precision positioning device.

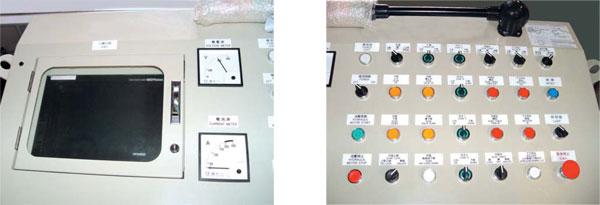

    7. Automatic Human-machine interface operation system.
    8. Ratio valve, pressure and flow system.
    9. Ratio electric valve precision die spotting system.
    10. Slide dust proof expansion sheath.
    11. Slide glide-path automatic lubrication system.
    1. Press in and push out of shafts and sockets.
    2. The bending and deep drawing of sheet metal.
    3. Straighten, forming, shear and punching.
    4. Compression testing.
    5. Production of computer caninet and parts.
    6. Office furniture components including drawer, rails.
    7. High tech composite material press process.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.

    Specification

    YCT-DS SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    Pressing
    Capacity
    (Ton)

    Ascending
    Capacity
    (Ton)

    		Table Area
    (mm)

    		Daylight
    (mm)
    		Stroke
    (mm)
    		Reverse
    Capacity
    (Ton)
    		Reverse
    Angle
    (°)
    		Load
    Capacity
    (Ton)
    		Motor
    (HP)
    YCT-50/75 DS
    		50/75
    		24
    		1000 x 800
    		1000
    		1000
    		2
    		90/180
    		4
    		10
    YCT-100 DS
    		100
    		28
    		1300 x 1000
    		1200
    		1200
    		2.5
    		90/180
    		5
    		15
    YCT-100 DS
    		100
    		32
    		1600 x 1200
    		1300
    		1300
    		3
    		90/180
    		6
    		15
    YCT-150 DS
    		150
    		35
    		1600 x 12001500
    		1500
    		4
    		180
    		8
    		20
    YCT-150 DS
    		150
    		38
    		1800 x 1300
    		1600
    		1600
    		5
    		180
    		11
    		25
    YCT-200 DS
    		200
    		40
    		2000 x 1500
    		1700
    		1700
    		7
    		180
    		15
    		30
    YCT-200 DS
    		200
    		45
    		2500 x 1500
    		2000
    		2000
    		10
    		180
    		20
    		30
    YCT-300 DS
    		300
    		60
    		3000 x 2000
    		2500
    		2500
    		15
    		180
    		30
    		40
    YCT-500 DS
    		50080
    		3600 x 2400
    		2700
    		2700
    		20180
    		4050

    Optional
