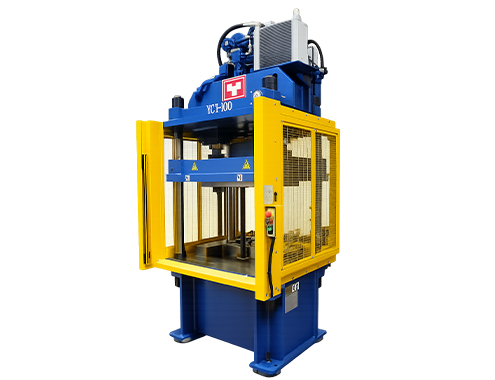

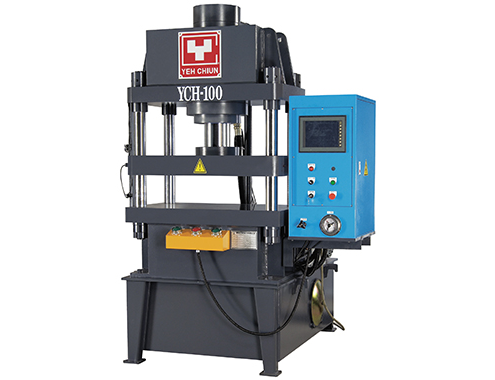

H-Frame Hydraulic Press

YCT-H Series
http://azicb6.gtmc.app/web/image/product.template/31/image_1920?unique=8afe11a

Capacity: 10-300 Tons
Table: 550x425 ~ 1000x800 mm
Stroke: 300-800 mm

    This combination does not exist.

    1. The machine structure is 4-Post. All the parts are included in machine body, the operation is safe and simple.
    2. Design is simple and free of trouble.
    3. The machine is multiple purpose, we are able to modify the design and enchance functions to meet your specialrequirements.
    1. Press in and push out of shafts and sockets.
    2. The bending and deep drawing of sheet metal.
    3. Straighten, forming, shear and punching.
    4. Compression testing.
    5. Production of computer caninet and parts.
    6. Office furniture components including drawer, rails.
    7. High tech composite material press process.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.

    Specification

    YCT-H SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    Capacity
    ( TON )

    Table
    size
    (mm)

    		Daylight
    (mm)

    		Stroke
    (mm)
    		Descending
    Speed
    (mm/sec)
    		Pressing
    Speed
    (mm/sec)
    		Ascending
    Speed
    (mm/sec)
    		Motor
    (HP)

    YCT-H-10

    10

    550x425

    450

    300

    120

    10

    100

    3

    YCT-H-20

    20

    600x425

    450

    300

    120

    15

    100

    7.5

    YCT-H-30

    30

    600x500

    450

    300

    120

    14

    100

    10

    YCT-H-50

    50

    700x600

    500

    350

    120

    14

    120

    15

    YCT-H-100

    100

    750x600

    600

    400

    120

    14

    120

    20

    YCT-H-150

    150

    900x700

    800

    550

    120

    14

    120

    25

    YCT-H-200

    200

    1000x800

    800

    600

    120

    10

    120

    30

    YCT-H-300

    300

    1000x800

    800

    600

    120

    10

    120

    40
