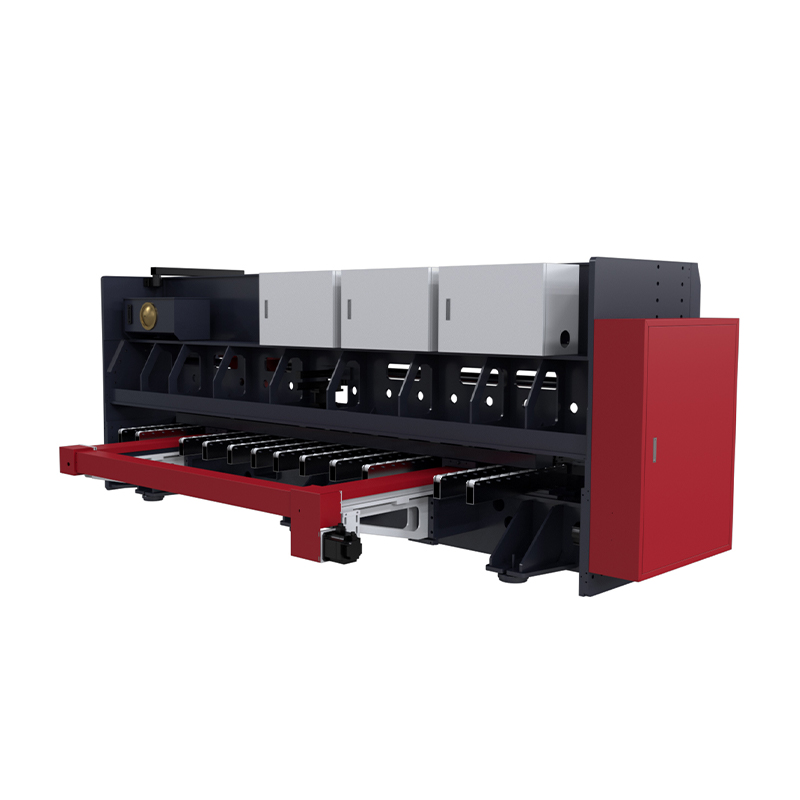

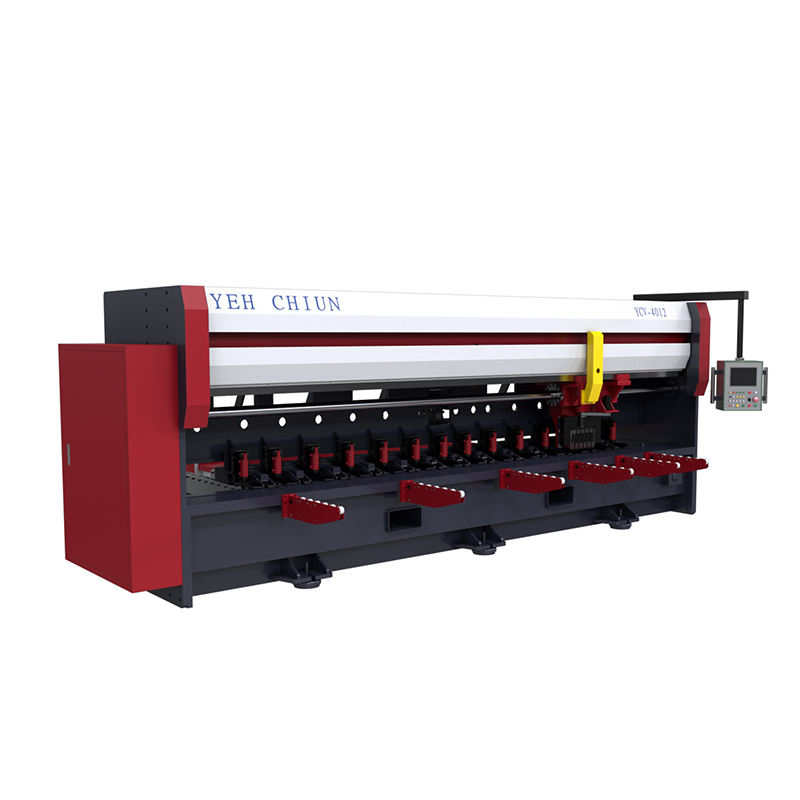

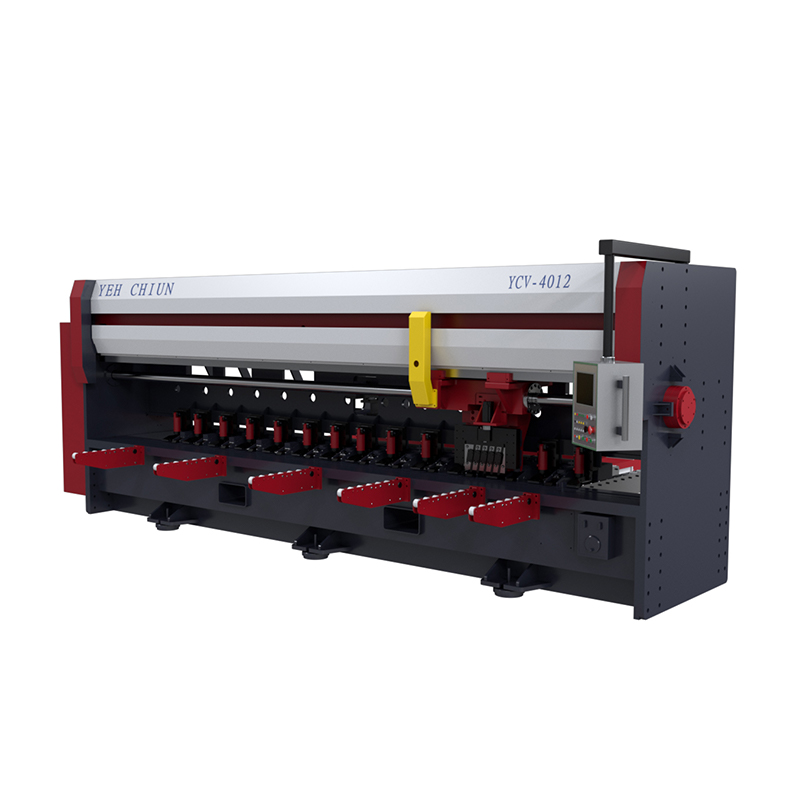

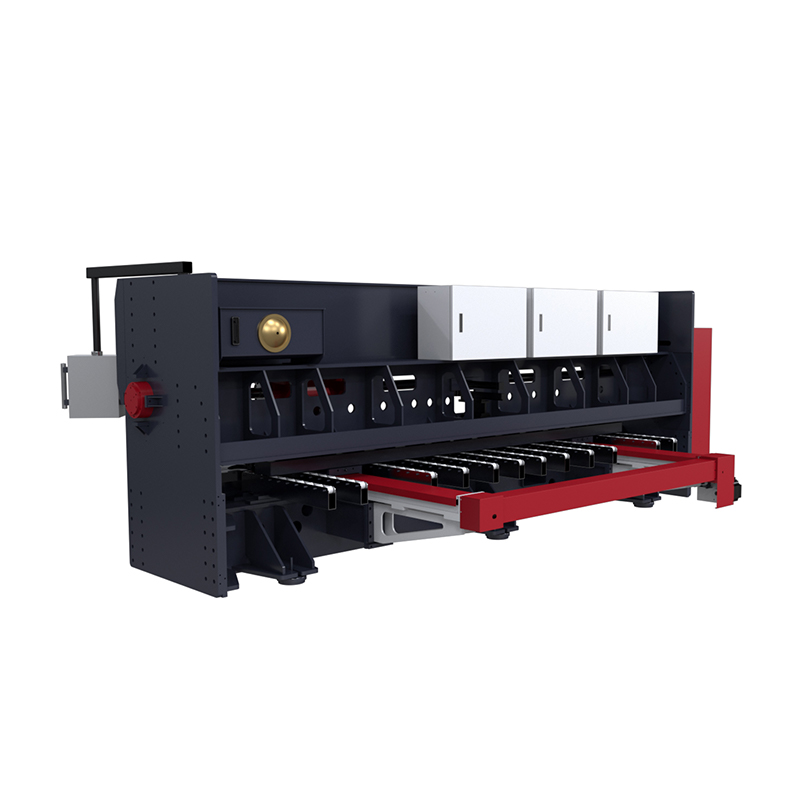

CNC 3 Axes Control V Planer

YCV Series
https://www.yehchiun.com/web/image/product.template/9/image_1920?unique=02ae395

Capacity: 1.5~2.0 mm
Speed: 300~1200(mm / Min)
Motor: 2.25kw

    This combination does not exist.

    Human machine interface system

    5 PLANER-TOOL PLANER
    4~5 TIMES HIGHER MANUFACTURING EFFICIENCY





    X-Y-Z micro-adjusting hand wheel

    Planer tool seat

    1. Processing length depends on working piece length. Planer tool’s stroke is adjustable. The working speed of the control V planer is stable and fast.
    2. CNC 3 axes control V planer, with semi-auto/auto processing function.
    3. Be able to clamp and hold the working piece in semi-auto/auto function. All operations can be done at once.
    4. The distance between planer tool and pressing plate is very small (3mm). The planned V slots are even.
    5. Easy to operate. Amateurs or female workers also can operate the machine easily.
    6. Low noise. Be able to operate the machine in industrial buildings.
    7. After planning the V slots on sheets, it can use a small tonnage hydraulic press brake to bend the sheet.

    SPECIFICATION

    CNC 3 AXES CONTROL STAINLESS STEEL PLATE V PLANER

    Under our continuous R&D, for any change in specifications without prior notice.

    Type
    (Model)

    YCV-2512

    		YCV-4012

    		YCV-6012
    CAPACITY
    		MATERIAL

    		SUS304 （不鏽鋼板）


    		LENGTH (mm)
    		300~2500
    		300~4000
    		300~6000

    		WIDTH (mm)

    		30~1200


    		THICKNESS (mm)

    		1.5~2.0 （3mm is for special usage)

    MACHINE SIZE
    		MACHINE / NW
    (L x H x W / mm) (Ton)
    		3880 x 2000 x 2300 / 10t
    		5400 x 2135 x 2300 / 18t
    		8080 x 2350 x 2300 / 25t

    		HYDRAULIC CIRCUIT / N.W (L x H x W / mm ) (kg)

    		860 x 600 x 600 / 110kg


    		CONTROL PANEL / N.W (L x H x W / mm ) (kg)

    		1660 x 600 x 550 / 140kg


    		OPERATION PANEL / N.W (L x H x W / mm ) (kg)

    		420 x 490 x 270 / 20kg

    SPEED
    		NORMAL CUTTING SPEED (M / Min)

    		10~15


    		FASTEST CUTTING SPEED (M / Min)

    		25


    		DELIVERY SHEET BACKWARD SPEED (mm / Min)

    		300~600


    		DELIVERY SHEET FORWARD SPEED (mm / Min)

    		300~600

    MOTOR
    		MAIN MOTOR (kw)

    		AC SERVO MOTOR 7.0kw


    		POSITIONING MOTOR (kw)

    		AC SERVO MOTOR 2.0kw


    		PLANER TOOL MOTOR (kw)

    		AC SERVO MOTOR 0.4kw


    		HYDRAULIC MOTOR (kw)

    		2.25kw
    		​

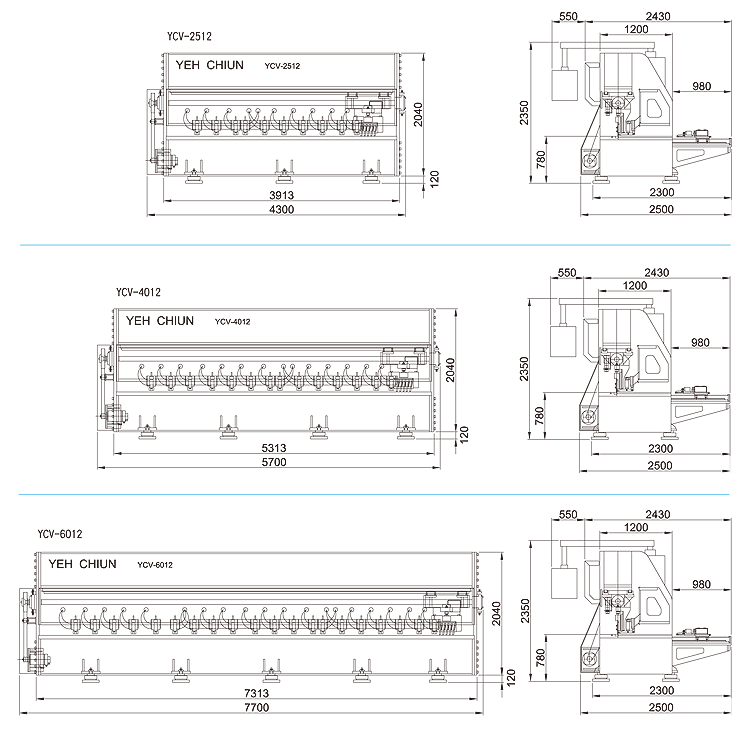

    Machine Specifications And Dimensions
