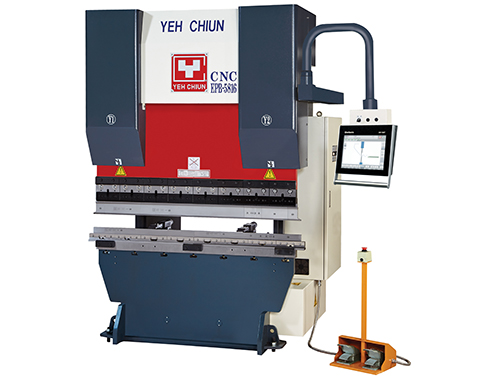

EPB Servo Press Brake

EPB Servo Press Brake-TWIN MOTOR TYPE EPB SERIES
http://azicb6.gtmc.app/web/image/product.template/4/image_1920?unique=5468990

    This combination does not exist.

    1. 10.1" TFT touch screen
    2. Panel based housing
    3. Beam stop control (Y)
    4. Backgauge control (X)(R)
    5. Retract functionality
    6. Manual movement of all axes
    7. Program memory for 100 programs
    8. 25 steps per program
    9. Tooling library

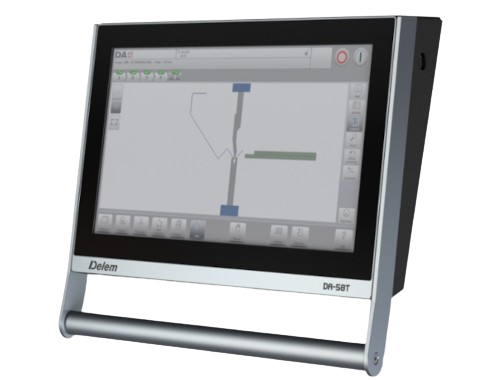

    1. 18.5” colour TFT touch screen
    2. Full screen touch control
    3. 2D graphic programming by touch-screen control
    4. 3D product graph display
    5. Automatic sequence computation
    6. Automatic collision detection
    7. Automatic pressure computation
    8. Programmable material properties
    9. Automatic crowning adjustment computation
    10. Diverse computing programming functions
    11. One page programming table
    12. Tool Library (Graphical programming and display)
    13. Tool Safety Zone Calculation
    14. Multi-language support (24 languages)
    15. 5-Axis Control
    16. Tandem Function Support (option)
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.

    SPECIFICATION

    EPB SERIES

    Under our continuous R&D, for any change in specifications without prior notice.

    Model

    Capacity
    (ton)

    Bending Length
    (mm)

    		Stroke Length
    (mm)

    		Speeding
    Lowering(mm/s)
    		Speeding
    Pressing(mm/s)
    		Speeding
    Return(mm/s)
    		AC servo motor
    (Y)(kw)
    		AC servo motor
    (Y1,Y2)(kw)
    		Angle Positioning Accuracy
    (mm)
    		Backgauge
    AC servo motor(kw)
    		 Backgauge
    Positioning Accuracy(mm)    		Backgauge
    Speed(m/min)    		Backgauge
    Stroke(mm)
    		R axis stroke
    (mm)
    		N.W.
    (kg)

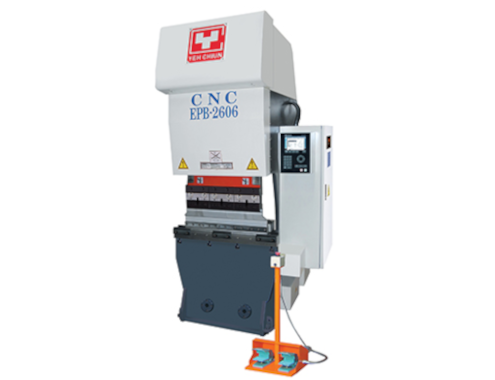

    EPB-2606
    		26
    		600
    		120
    		1~150
    		0.2~20
    		1~150
    		4.2
    		-
    		±0.01
    		0.7
    		0.03MAX. 30480
    		100
    		2330
    EPB-3813
    		38
    		1300
    		120
    		1~150
    		0.2~20
    		1~150
    		-
    		4.2
    		±0.01
    		0.7
    		0.03MAX. 30480
    		100
    		3000
    EPB-5816
    		58
    		1600
    		120
    		1~120
    		0.2~20
    		1~120
    		-
    		4.6
    		±0.01
    		0.7
    		0.03MAX. 30480
    		100
    		3600
    EPB-5820
    		58
    		2000
    		160
    		1~120
    		0.2~20
    		1~120
    		-
    		4.6
    		±0.01
    		0.7
    		0.03MAX. 30480
    		100
    		4000
    EPB-8025
    		80
    		2500
    		160
    		1~120
    		0.2~20
    		1~120
    		-
    		7.1±0.01
    		0.7
    		0.03MAX. 30480
    		1006000
