  4. NC Hydraulic Guillotine Shear YCS-HM Type

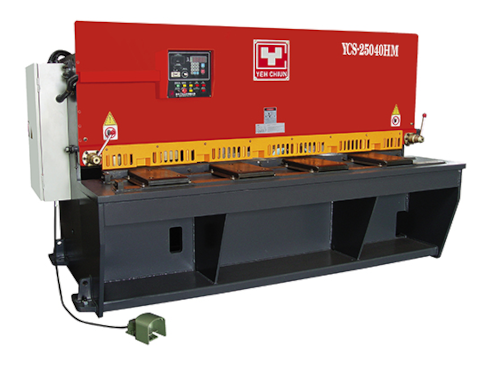

NC Hydraulic Guillotine Shear

YCS-HM Type
http://azicb6.gtmc.app/web/image/product.template/25/image_1920?unique=dfe776d

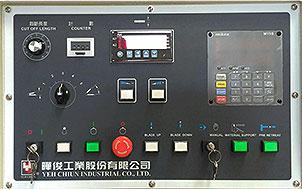

Back Gauge Brake Motor
Speed: 1420 RPM
Reduction Ratio: 10 : 1
Accuracy: + / - 0.1 mm
Stroke: 800 mm
Shear Length: 0.1-9.9M
Counter: 9999

A hydraulic guillotine shear is a machine that cuts metal or other materials with a sharp blade that moves up and down by hydraulic power. It can make clean and precise cuts on metal in different forms, such as plates, sheets, or rods. The cut metal can then be shaped or bent on another machine.

Yeh Chiun hydraulic guillotine shearing machine has a sturdy and compact design with an adjustable shearing angle. Our YCS-HM Model can cut metal sheets with lengths from 0.1-9.9M and thicknesses from 0.1mm to 25mm. For other detailed specifications of our hydraulic guillotine shear, you can find out through the table below.

    This combination does not exist.

    1. OBLONG FRONT SCALE 1400 mm
    2. FRONT FRAME 1400 mm
    3. FRONT GAUGE SETTER
    4. FRICTIONLESS BALL ROLLER WORKING TABLE
    5. SHADOW LINE
    6. HAND PROTECTION DEVICE
    7. SCRATCHPROOF RUBBER PUSH PAD
    8. MAINTENANCE AND OPERATIONAL MANUAL
    9. TOOLS FOR MAINTENANCE (BOX)
    1. Hydraulic guillotine shear acts in a vertical up and down manner, which is enables by synchronized hydraulic cylinders and direct fixing mechanism of the upper blade. The sheared edge is burr free and precise.
    2. Unique hydraulic control adjusts automatically the output of holddown cylinders according to the magnitude of the load. Shearing thickness ranges from 0.1mm to 25mm
    3. Logic hydraulic circuit, controlled by sequence valves functions at a low level of noise with no vibration. Stability as well as normal fluid temperature of hydraulic components can be maintained under high-speed and long-lasting operations to assure consistent performance of the shear.
    4. The shear body and blade base are made of SS400 steel plates which have been annealed for the elimination of internal stress. Control functions are integrated in the front side of the shear for the ease of operations.
    5. Overload protection ensures the safety of the shear and operators.
    6. Special design of blade offers easy adjustment of blade's clearance. It can remain the shearing section and machine's safety by pushing buttons or Controllers calculate.
    7. Back gauge is driven by brake motor and precision ball screw to cut accurately and precisely.
    8. Back gauge dual U overhang linear guide.
    9. Easy back gauge calibration.
    10. Pre-retreat of back gauge to thick sheet cutting.
    11. The controller maintains functional in the environment of highvoltage electromagnetism.

    ※ Automatic sheet support system provides extreme long plate shearing and protection from scratch. The support's quick response to plate support and descent makes the shearing even more accurate and smoother. (OPTIONAL)

    1. 2D graphical touch screen.
    2. 3D visualization in simulation and production.
    3. 17" color LCD display. (TFT)
    4. Standard Windows functions. User specific applications support.
    5. USB keyboard, mouse and flash memory drive.
    6. Emergency stop device.
    7. German HOERBIGER hydraulic circuit.
    8. Equipped with European optical scales.
    9. Precision ball screw lead, linear slide way and AC servo motor for X axis.
    10. Bearing-type guideway system.
    1. Alphanumeric product naming.
    2. Automatic bending sequences calculation and setting.
    3. Multi-aspect programming, graphics programming, data programming and one page programming table.
    4. Millimetres/Inches, KN/Ton and languages selection.
    5. Programmable material properties and axes speed.
    6. Bend sequences and real-scale tooling visualization while bending.
    7. Computed functions include tooling safety zones, press force, crowning adjustment, developed length, axes position, operation modes and etc.
    8. Step repeat up to 99 (maximum).
    9. Error messaging system.
    10. Hand-wheel movement of all axes.


    Manual Blade Gap Adjustment Device

    Hand protection device

    Specification

    YCS-S SERIES / YCS-SM Type

    The specifications are subject to change without prior notice as a result of our continuing R&D.

    Type
    (Model)
    YCS-HM

    Shearing
    Length
    (mm)

    Max.
    Thickness
    ( SS400 )
    (mm)

    		Stainless
    Steel Thickness
    ( SUS304 )
    (mm)

    		Throat
    (mm)
    		Max. Angle
    (SS400)
    		Shear/Min
    		Hold-Down
    Beam
    Cylinder
    (No.)
    		Main
    Motor
    (HP)​
    		Backgauge
    Stroke
    (mm)
    YCS-15045H
    		1550
    		4.5
    		3.0
    		100
    		2°
    		27-35
    		9
    		10
    		800
    YCS-20045H
    		2000
    		4.5
    		3.0
    		100
    		2°
    		26-34
    		11
    		10
    		800
    YCS-25045H
    		2500
    		4.5
    		3.0
    		100
    		2°
    		25-33
    		13
    		10
    		 800
    YCS-31045H
    		3100
    		4.5
    		3.0
    		100
    		2°
    		24-32
    		16
    		15
    		800
    YCS-41045H
    		4100
    		4.5
    		3.0
    		100
    		2°
    		17-25
    		21
    		15
    		800
    YCS-61045H
    		6100
    		4.5
    		3.0
    		100
    		2°
    		11-17
    		30
    		20
    		800
    YCS-15065H
    		1550
    		6.5
    		4.0
    		100
    		2°
    		26-34
    		9
    		15
    		 800
    YCS-20065H
    		2000
    		6.5
    		4.0
    		100
    		2°
    		25-33
    		11
    		15
    		800
    YCS-25065H
    		2500
    		6.5
    		4.0
    		100
    		2°
    		24-32
    		13
    		20
    		800
    YCS-31065H
    		3100
    		6.5
    		4.0
    		100
    		2°
    		21-29
    		16
    		20
    		800
    YCS-41065H
    		4100
    		6.5
    		4.0
    		100
    		2°
    		15-23
    		21
    		25
    		800
    YCS-61065H
    		6100
    		6.5
    		4.0
    		100
    		2°
    		11-19
    		30
    		30
    		800
    YCS-25080H
    		2500
    		8.0
    		5.0
    		100
    		2° 30'
    		18-26
    		13
    		25
    		800
    YCS-31080H
    		3100
    		8.0
    		5.0
    		100
    		2° 30'
    		15-23
    		16
    		25
    		800
    YCS-41080H
    		4100
    		8.0
    		5.0
    		100
    		2° 30'
    		12-20
    		21
    		30
    		800
    YCS-61080H
    		 6100
    		8.0
    		5.0
    		100
    		2° 30'
    		7-15
    		30
    		40
    		800
    YCS-150100H
    		1550
    		10
    		6.5
    		100
    		2° 30'
    		22-30
    		13
    		30
    		800
    YCS-250100H
    		2500
    		10
    		6.5
    		100
    		2° 30'
    		18-26
    		16
    		 30
    		800
    YCS-310100H
    		3100
    		10
    		6.5
    		100
    		2° 30'
    		15-23
    		21
    		30
    		800
    YCS-410100H
    		4100
    		10
    		6.5
    		100
    		2° 30'
    		12-20
    		30
    		40
    		800
    YCS-610100H
    		6100
    		10
    		6.5
    		 100
    		2° 30'
    		7-15
    		30
    		50
    		800
    YCS-250130H
    		2500
    		13
    		8.5
    		100
    		2° 30'
    		15-21
    		13
    		40
    		800
    YCS-310130H
    		3100
    		13
    		8.5
    		100
    		2° 30'
    		13-19
    		16
    		40
    		 800
     YCS-410130H
    		4100
    		13
    		8.5
    		100
    		2° 30'
    		10-16
    		21
    		50
    		800
    YCS-610130H
    		6100
    		13
    		8.5
    		100
    		2° 30'
    		7-136
    		30
    		75
    		800
